Datasheet Product Family DC Spark-over Voltage (V) Size(mm) Max. Impulse Discharge Current (KA) (1 Time)
GS22R 150-600 L3.2*W1.6*H1.6,
SMD		 0.5KA
(10 Times)
GS22Y 150-500 L3.2*W1.6*H1.6
SMD		 0.5KA
(10 Times)
GF32R 90-600 L4.5*W3.2*H2.7,
SMD		 3KA
(10 Times)
GF32Y 90-600 L4.5*W3.2*H2.7, SMD 2 KA
(10 Times)
GF42R 75-1000 4.2/3.5*T4,
SMD2R		 75-600V:5KA
800-1000V:3KA

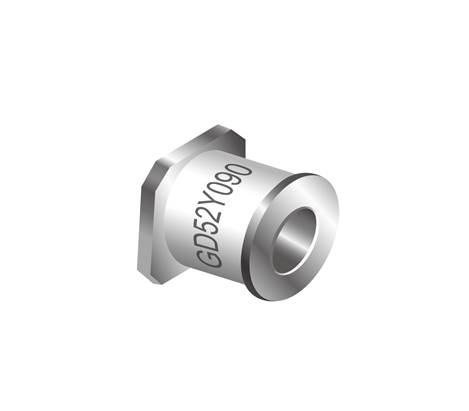

GD52Y-M 90-600V 5.4*T4,
SMD2R		 2.5KA (10 Times)
5KA(1 Time)

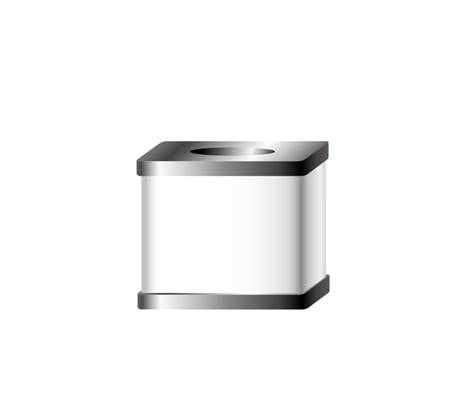

GF52Y-C 90-1000 5*T4.2,
SMD2R		 90-600V: 5KA (10 Times)
800V&1000V: 2.5KA (10 Times)
GF62R 75-1200 6.2*T4.2,
SMD2R		 75-800V:8KA
1000-1200V:5KA

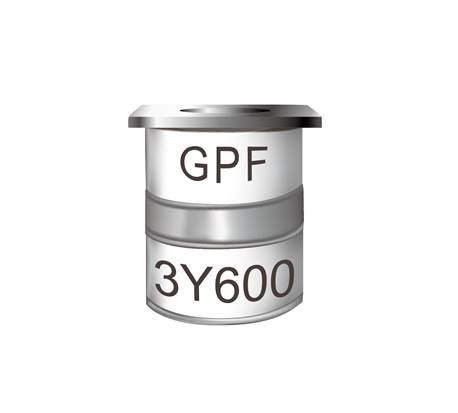

GPF3Y-M 90-600 5*T7.6
SMD3R		 5KA
(10 Times)

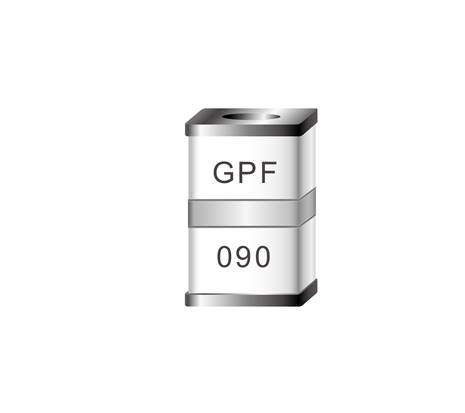

GPF3Y-C 90-600 5*T7.6,
SMD3R		 10 KA
(10 Times)
GD52R 70-3600 5.5*T6, 2R 70-470V:10KA
600-800V:5KA
1000-3600V:3KA
GD82R-U
(High Surge Type)		 70-600 8*T6,2R 25KA
GD82R 70-1000 8*T6,2R 70-600V:15KA
800-1000V:10KA
(10 Times)
GC82R
(High Voltage Type)		 600-6000 8*T8/T10,2R 600-2500V:8KA
2700-6000V:5KA
GRC2R 230-7500 8*T6/7.9,2R 10KA
GB83R 8*T10,3R 75-600 20KA
(10 Times)
GC63R 90-600 6*T8, 3R 90-145V:5KA
200-250V:10KA
350-600V:5KA
(10 Times)
GQF3R 75-800 5*T7.2,
2R		 75-150V:10KA
200-470V:15KA
600-1100V:10KA
G12D8A 230-800 11.8*T8,2R 20KA(10 Times)
40KA(1 Time)
G12D12 230-800 11.8*T12,2R 30KA (10 Times)
40KA (1 Time)
G12D17 230-2200 11.8*T17,2R 230~800V:
40KA (10 Times)/60KA(1 Time)
1200~2200V:
20KA (10 Times)/ 25KA (1 Time)
G12D18 230-800 11.8*T18,2R 40KA (10 Times)
80KA (1 Time)
G16D5A 500-800 15.5*T5,2R 20KA (10 Times)
40KA (1 Time)
G20D5F 150-1000 20*T5.5,2R 40KA (10 Times)
60KA (1 Time)
G25D10 500-800 25*T10,2R 60KA (10 Times)
80KA (1 Time)
G25D10-H
(High Surge Type)		 500-800 25*T10,2R 80KA (10 Times)
120KA (1 Time)
G25D21 500-800 25*T21,2R 80KA (10 Times)
160KA (1 Time)
G30D12 500-800 30*T12,2R 100KA (10 Times)
160KA (1 Time)
